Card Issuing System
THE TIOSK MODELS

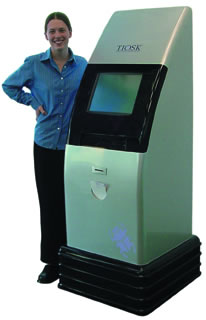

FLOOR MODEL SPECIFICATIONS
(KCD2002-FM)
PATENT PENDING

Microprocessor Hitachi SH4 167 MHz, 260 MIPS
Memory RAM 8 Mbytes Standard
Operating System Microsoft WinCE 3.0
Display LCD Touch-screen SVGA (1024 x 768)
Backlit
Resistive finger touch
Size 15.1" X 13.9"
Card Reader Magnetic Stripe Motorized Insertion
1 Track Reader
Card Dispenser Card Standard ISO 7811
Card Thickness 24 30 mils
Card Capacity 300 cards
Communication Ethernet 10/100
Modem

9600,2400,1200,300 bps

V.29, V.22bis, V.22, V.21
Printer Thermal Printer Paper Width 56mm
Print Density 448 dots/line
Print Speed 640 dots/sec
Power A/C 85 250 VAC
50/60 Hz, 4A
Environment Operating Temperature 5C to 50C
Operating Humidity 0 to 80%
Physical Height   58 in
Width 24 in
Length 24 in
Weight107 lbs.


TABLE TOP MODEL SPECIFICATIONS
(KCD2002-TT)
PATENT PENDING

Microprocessor Hitachi SH4 167 MHz, 260 MIPS
Memory RAM 8 Mbytes Standard
Operating System Microsoft WinCE 3.0
Display LCD Touch-screen SVGA (1024 x 768)
Backlit
Resistive finger touch
Size 15.1" X 13.9"
Card Reader Magnetic Stripe Motorized Insertion
1 Track Reader
Card Dispenser Card Standard ISO 7811
Card Thickness 24 30 mils
Card Capacity 300 cards
Communication Ethernet 10/100
Modem

9600,2400,1200,300 bps

V.29, V.22bis, V.22, V.21
Printer Thermal Printer Paper Width 56mm
Print Density 448 dots/line
Print Speed 640 dots/sec
Power A/C 85 250 VAC
50/60 Hz, 4A
Environment Operating Temperature 5C to 50C
Operating Humidity 0 to 80%
Physical Height   16.5 in
Width 11 in
Length 22 in
Weight35 lbs.
